Slimline Modular Belt Case Study
This project provides a narrow modular belt conveyor used for testing various products. We also have a dedicated page for SMALL MINI BELT CONVEYORS >>
Slim Line Conveyor Photos
Conveyor Product & Design Details
Slim line Conveyor Design Specification |
|
| Product: | Various jars and bottles |
| Belt Speed: | 60 m/min |
Plastic Belt Slimline Conveyor Operation

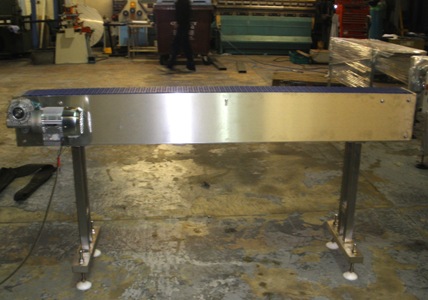

One off Slim line Plastic Modular Belt Conveyor being 150mm wide x 2000mm long x 1050mm high. The belt was set just below the side frame on both sides to allow side transfer.
The Conveyor was mounted on a box section framework supplied with adjustable feet +100mm. A shaft mounted geared motor drive unit was also included.
General construction is grade 304 stainless steel and food standard materials where possible.Small Modular Belt Slim line Conveyor Video
